Image Information

LBN 576 (also known as Abell 85 and CTB 1) is a faint supernova remnant lying almost 10,000 light years away. Coincidentally, it is also around 10,000 years old. Until recently it was thought to be a planetary nebula but recent studies confirm it to be a supernova remnant, the closest one known to Earth. Supernova remnants result from the explosion of a star in a supernova and are bounded by an expanding shock wave. They consist of ejected material expanding from that explosion.

Credit & Copyright: Burley Packwood

I'm not sure why the huge difference in posted images versus mine except that maybe more RGB data would be beneficial. I have noted that most of the other images I have seen that show a good deal more nebula detail are taken with wide field refractors and thus likely to be a faster optic netting more detail in less time. For now the project will continue in RGB data collection.












1600         2000

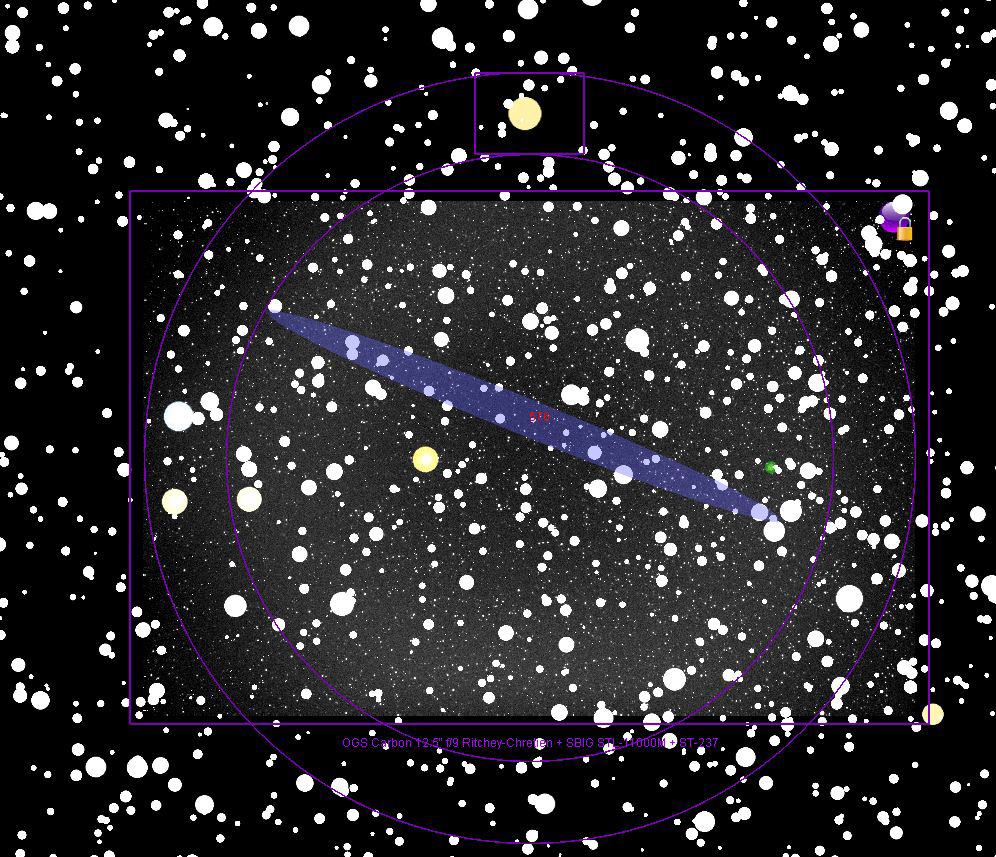

TheSky X Image Link
LBN576 Imaged Linked in TheSky X

This image is one of my longest yet. The luminance data is 83 - 15 minute frames (20-3/4 hours) and there are 68 RGB frames each 15 minute each (17 hours) with 6 hours red, 6 hours green, and 5 hours blue. Image processed in Pix Insight. Data acquired using ACP Scheduler and MaxIm 5.24.

Equipment and Location Information

Date June 6- Nov. 15, 2015
Location Dogwood Ridge Observatory
Optics Optical Guidance Systems 12.5" RC @f/9
Mount Astro Physics AP1200GTO
Camera SBIG STL-11002M/CW8
Filters Baader LRGB Ha 7nm,SII 8nm, OIII 8.5nm - 50.8mm Unmounted Filters
Conditions Temperature low to mid 50s - 60s with moderate to good  seeing. Transparency good.
